Tm4 Sumo™ HD
Motor/Inverter System
About
Dana TM4 SUMO HD are heavy-duty, automotive-grade motor and inverter systems built for very high power and torque applications. Typically used as direct drive units, they are designed for continuous, demanding duty cycles in class 7 and above commercial vehicles and heavy industrial applications.
Light Commercial
Light FLatbed
Tractor
Dump truck
Box truck
Coach bus
Heavy-Duty Flatbed
City bus
Features & benefits
Peak power
Up to 350 kW
Peak torque
Up to 4000 Nm
Max operating speed
3400 RPM
High torque/low speed permanent magnet motor and inverter combinations
Designed to interface directly with standard axles (no gearbox required)
Details
Standards
System protection: IP67 / IP6K9K
Automotive components: AEC-Q100 / AEC-Q101 / AEC-Q200
Electromagnetic compatibility EMC: Main automotive international standards
Shock and vibration standards: GMW3172 Sprung masses
Max coolant inlet temperature: 65°C
Coolant type: 40/60 water-glycol
Motor features
Proven permanent magnet technology for optimal efficiency
Outer rotor topology for maximum torque density
Low electro-magnetic audible noise
Low-cogging and ripple torque for better NVH
Four-quadrant operation
Latest system Features [NEW]
Voltage increase: 750 V to 800 V
Quick Connect with HVIL for safe and easy installation or maintenance
Increased performances range
KITAS option available on demand
INverter Features
9-phase high-voltage inverter
Variable switching frequency
Reflex™ gate driver technology for high power and current densities
EMI Filter
Best-in-class power density
High efficiency

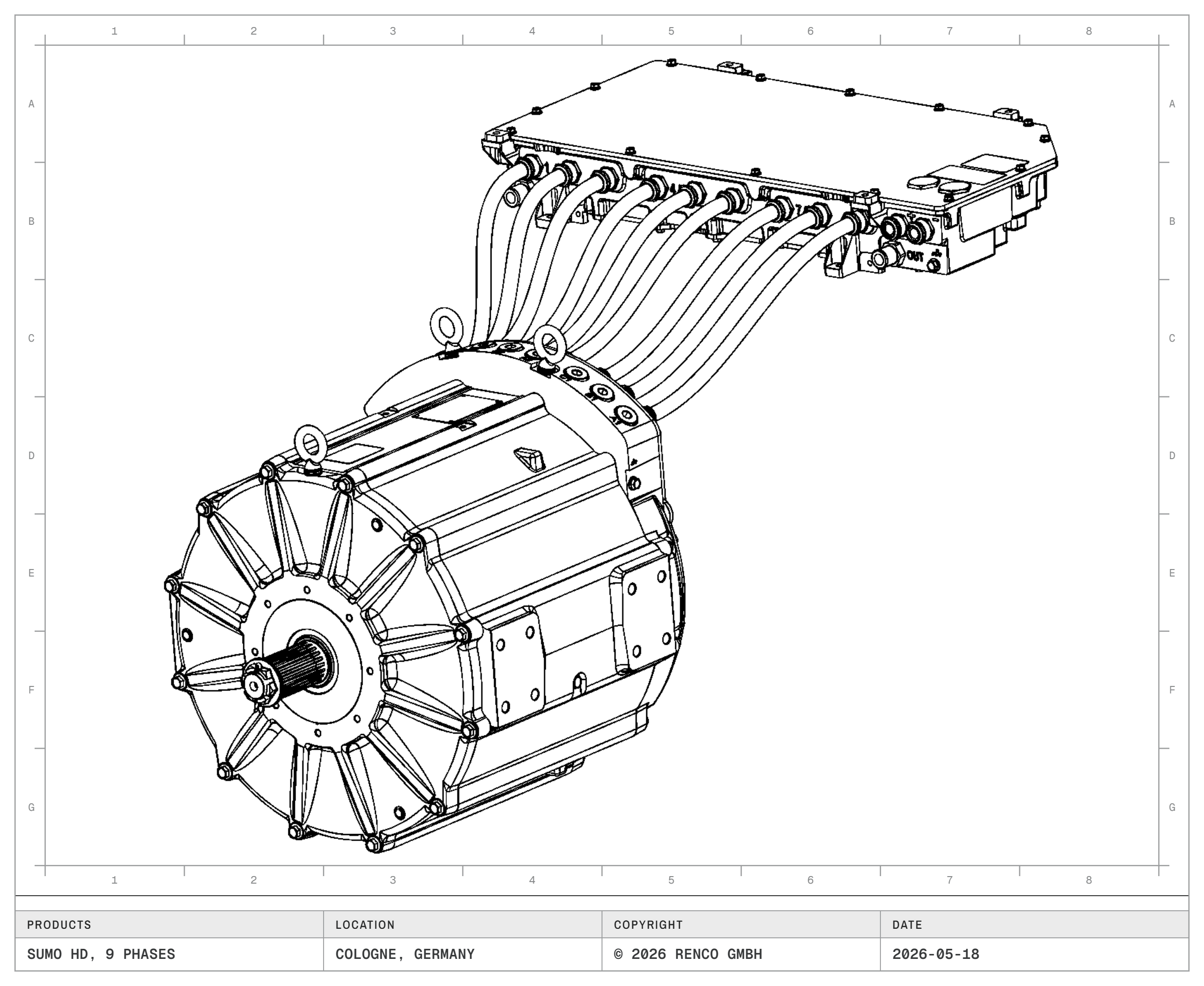

Technical Drawing - SUMO HD HV3500

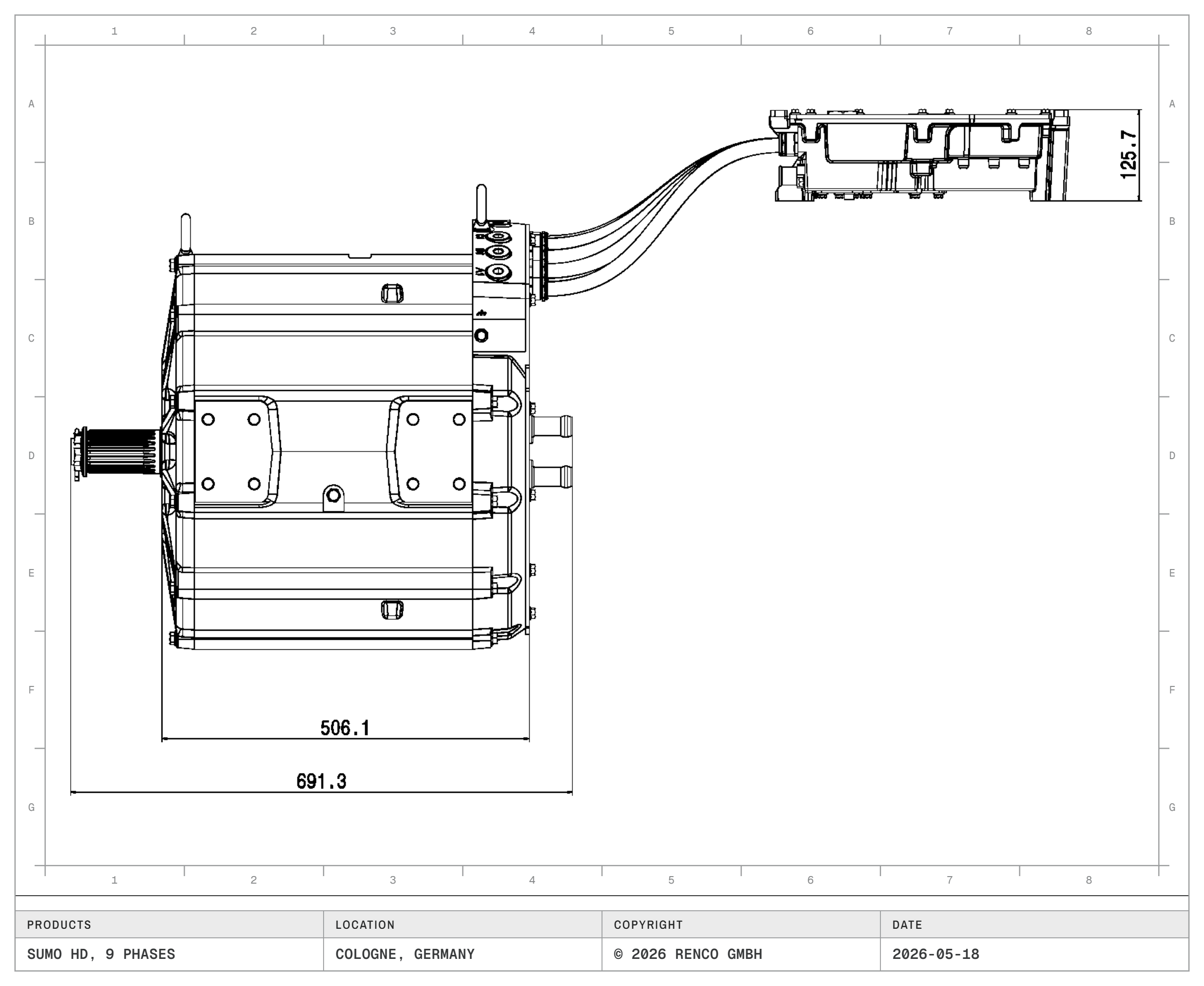

Technical Drawing - SUMO HD HV3500

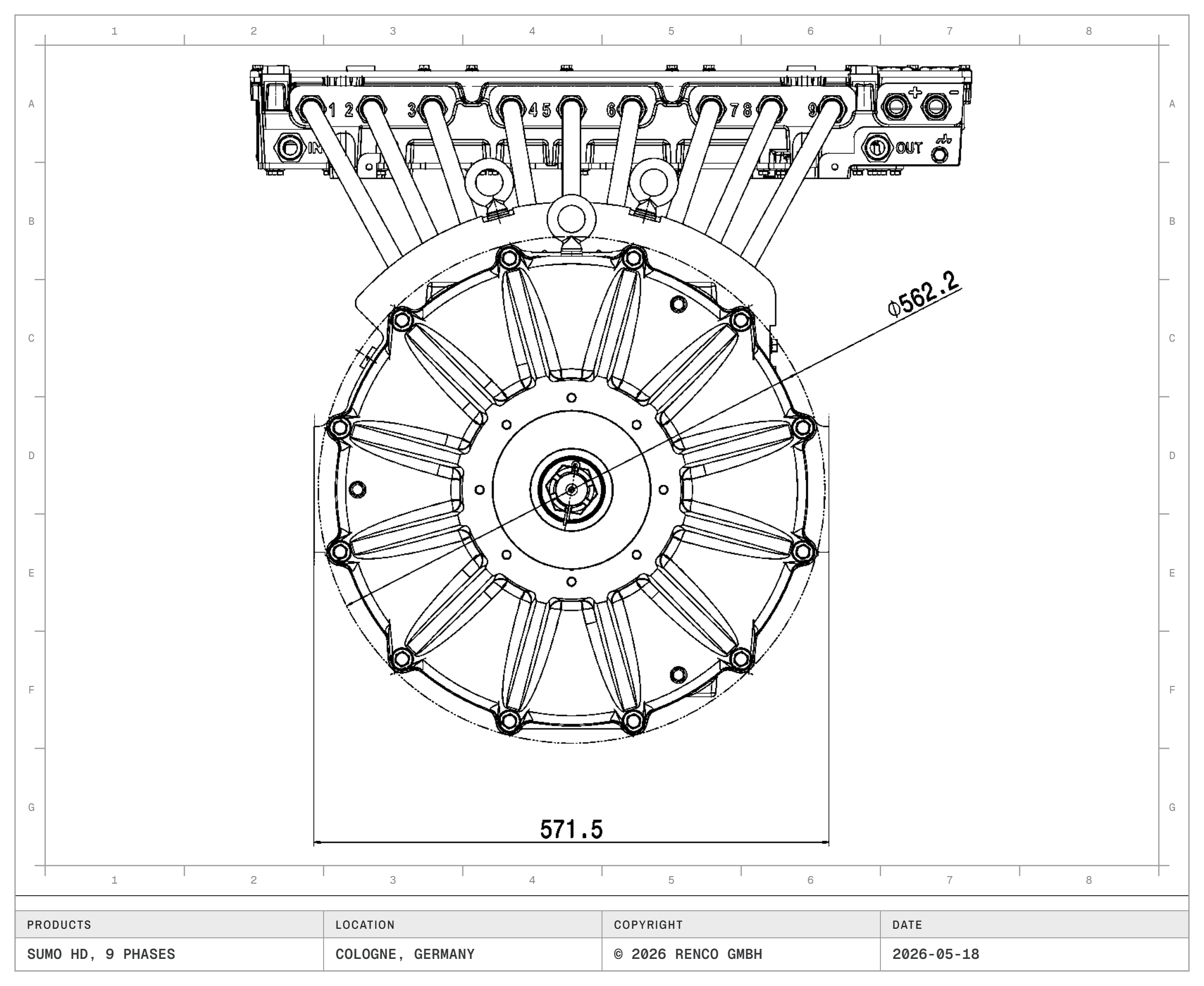

Technical Drawing - SUMO HD HV3500
| System | Inverter | Peak power | Continuous power | Peak torque | Continous torque | Max Operating speed | Range |
|---|---|---|---|---|---|---|---|
| SUMO HD HV3400-9P | CO300 | 250 kW | 195 kW | 3400 Nm | 2060 Nm | 2450 RPM | 300-750 Vdc |
| SUMO HD HV3500-9P | CO300 | 370 kW | 260 kW | 3445 Nm | 1970 Nm | 3400 RPM | 300-750 Vdc |
| SUMO HD HV3500-9P* | CO300 | 475 kW | 260 kW | 3415 Nm | 1970 Nm | 3400 RPM | 300-800 Vdc |
| SUMO HD HV4000-9P | CO300 | 250 kW | 197 kW | 4000 Nm | 2090 Nm | 2450 RPM | 300-750 Vdc |
600 Vdc, 45°C / *650 Vdc, 45°C
Specifications are subject to change
