Tm4 Sumo™ MD
Motor/Inverter System
About
Dana TM4 SUMO MD are motor and inverter systems typically used as direct drive units. Their torque and speed range covers class 4 to 7 commercial vehicles, bus platforms, and off-highway applications.
Light Commercial
Light FLatbed
Tractor
Dump truck
Box truck
Coach bus
Heavy-Duty Flatbed
City bus
Features & benefits
Peak power
Up to 365 kW
Peak torque
Up to 3100 Nm
Max operating speed
3700 RPM
High torque/low speed permanent magnet motor and inverter combinations
Designed to interface directly with standard axles (no gearbox required)
Details
Standards
System protection: IP67 / IP6K9K
Automotive components: AEC-Q100 / AEC-Q101 / AEC-Q200
Electromagnetic compatibility EMC: Main automotive international standards
Shock and vibration standards: GMW3172 Sprung masses
Max coolant inlet temperature: 65°C
Coolant type: 40/60 water-glycol
Motor features
Proven permanent magnet technology for optimal efficiency
Outer rotor topology for maximum torque density
Low electro-magnetic audible noise
Low-cogging and ripple torque for better NVH
Four-quadrant operation
Latest system Features [NEW]
Voltage increase: 750 V to 800 V
Quick Connect with HVIL for safe and easy installation or maintenance
Increased performances range
KITAS option available on demand
INverter Features
3-phase or 6-phase high-voltage inverter
Variable switching frequency
Reflex™ gate driver technology for high power and current densities
EMI Filter
Best-in-class power density
High efficiency

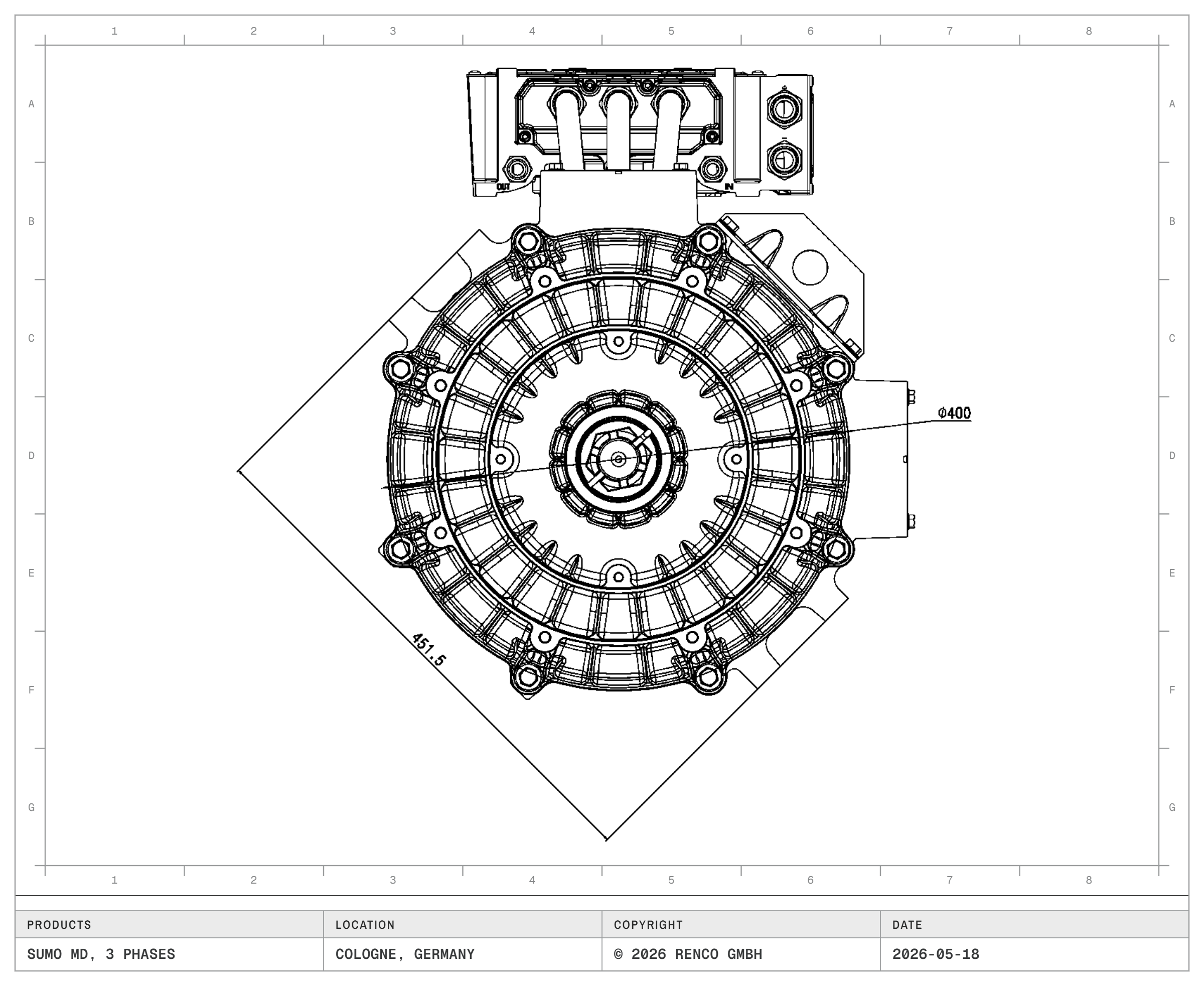

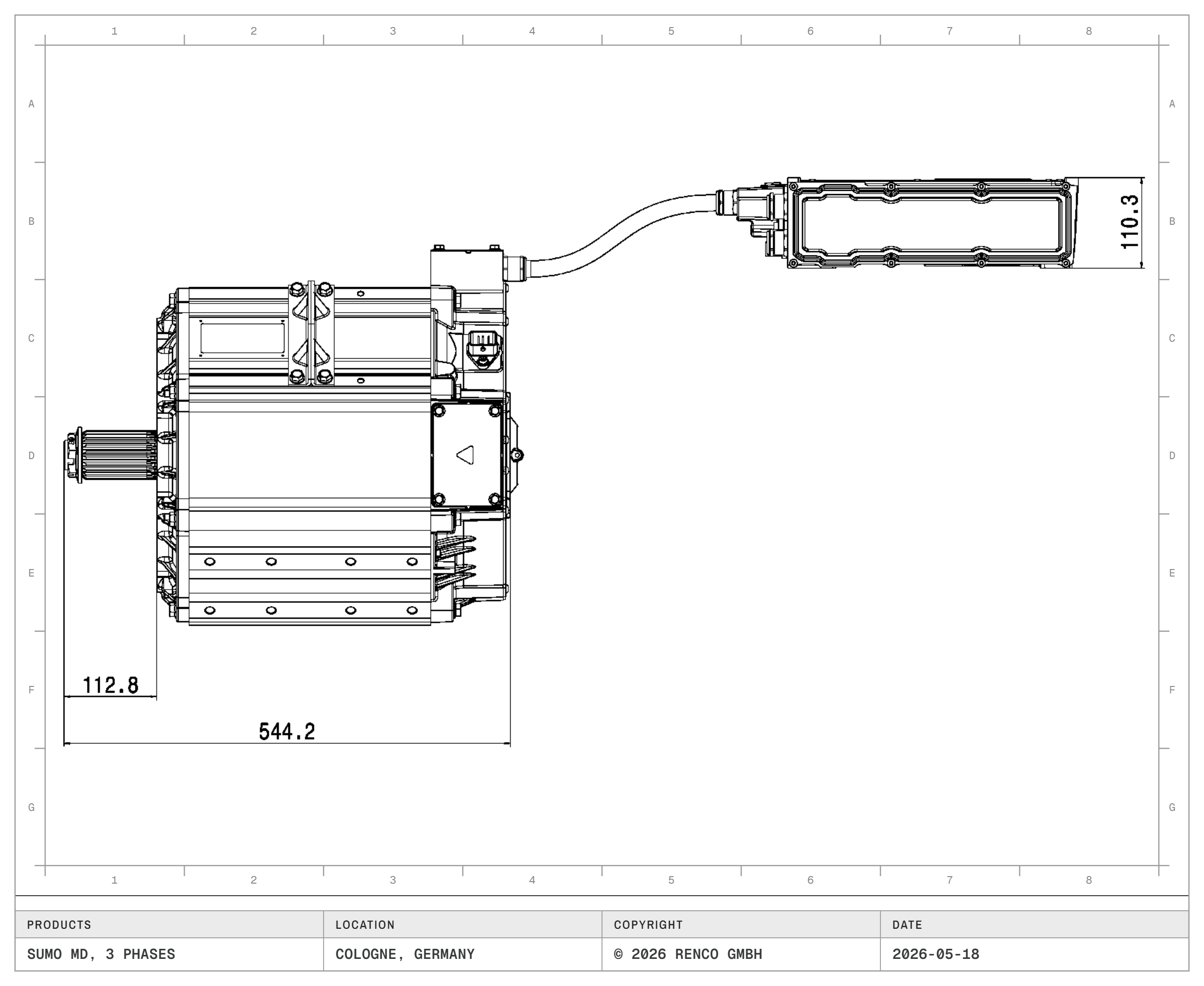

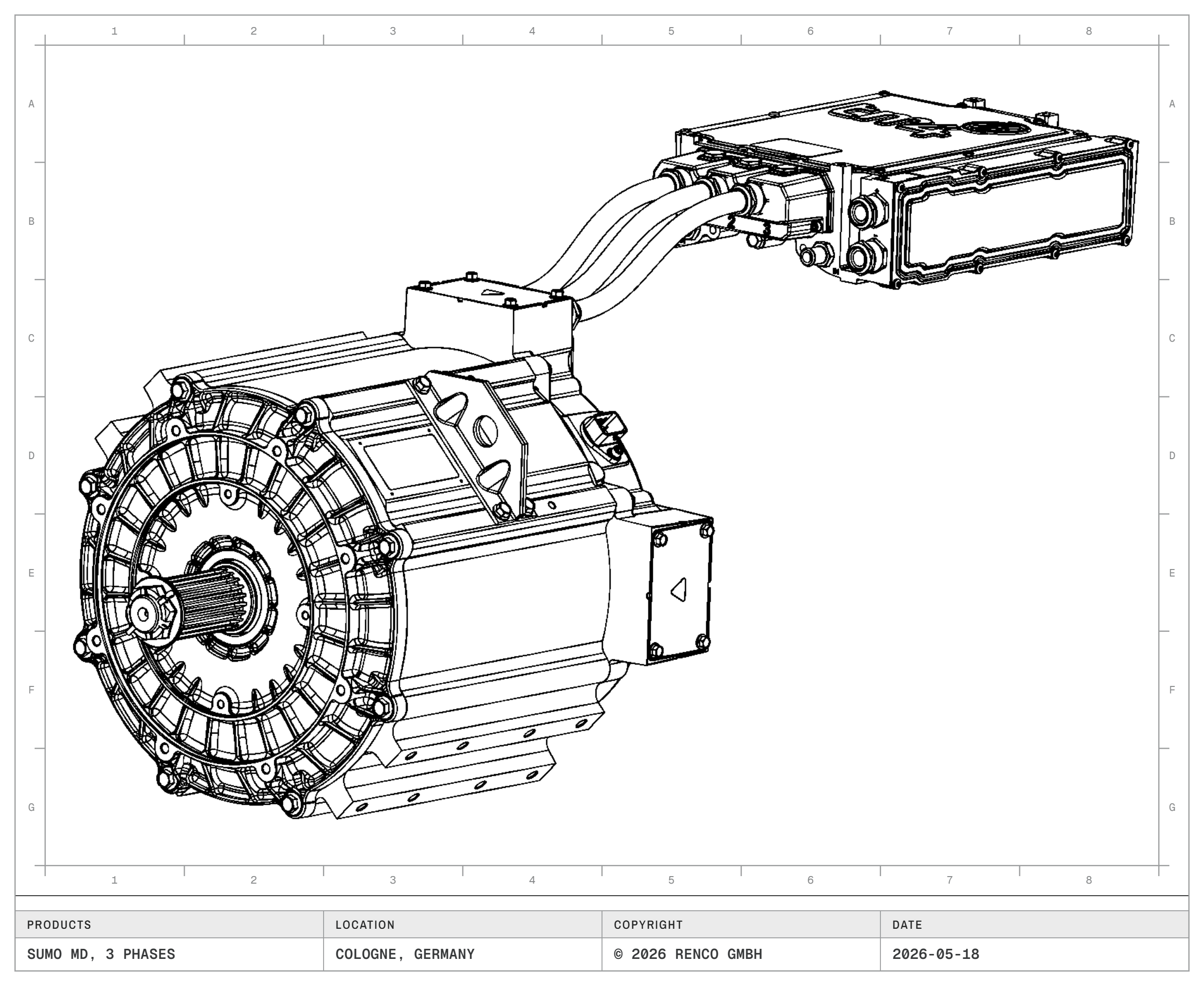

Technical Drawing - SUMO MD HV1800
Technical Drawing - SUMO MD HV1800
Technical Drawing - SUMO MD HV1800

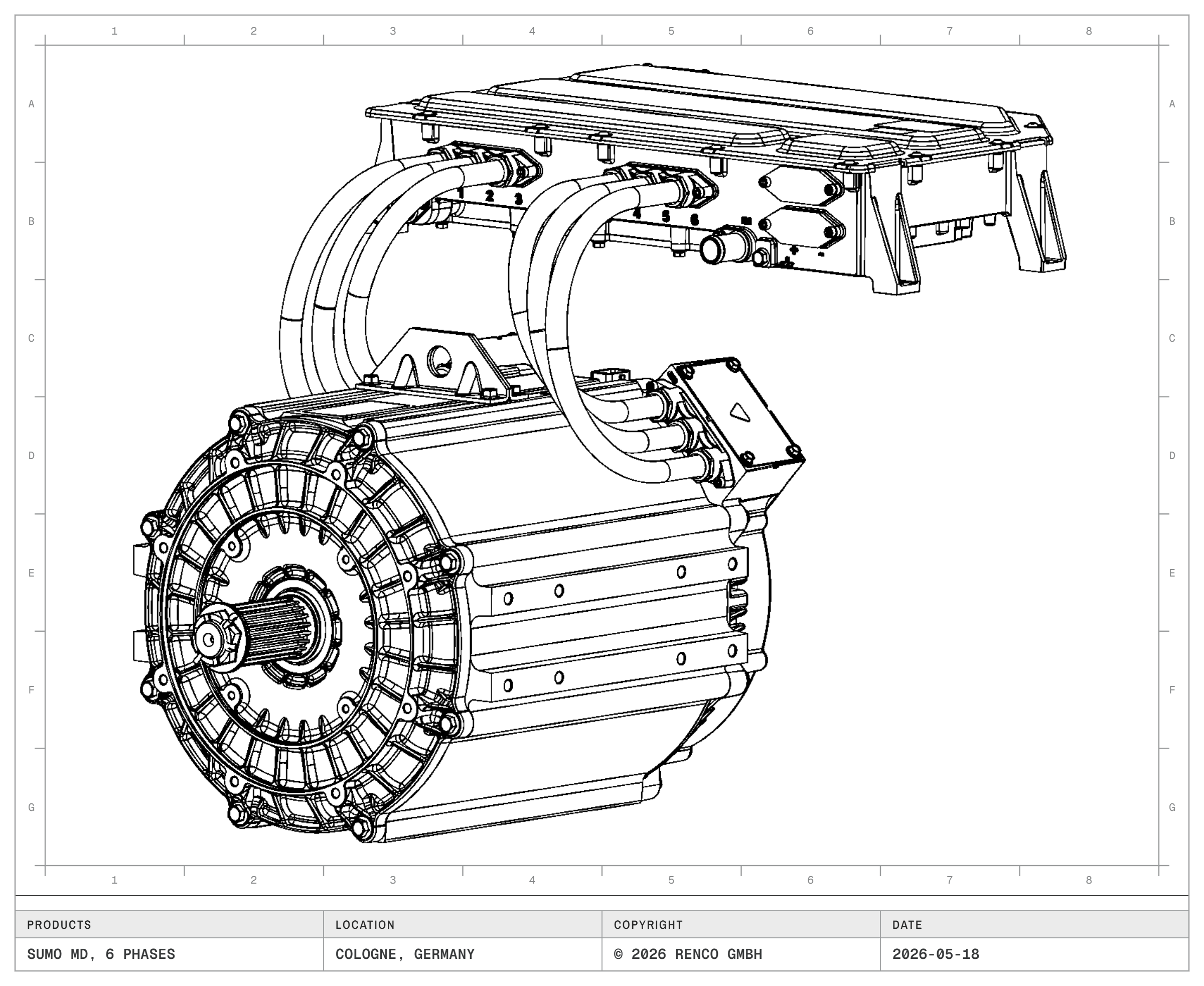

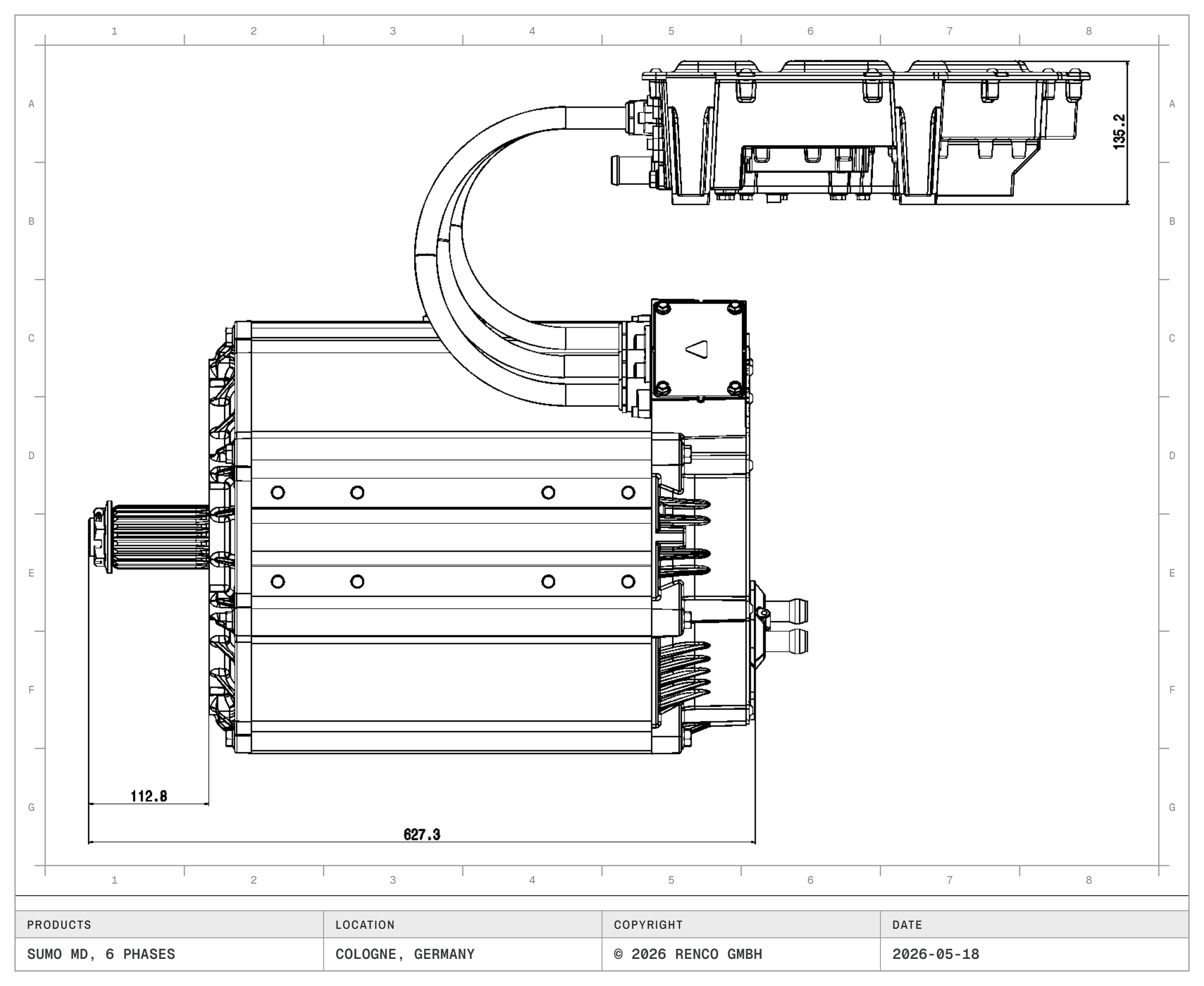

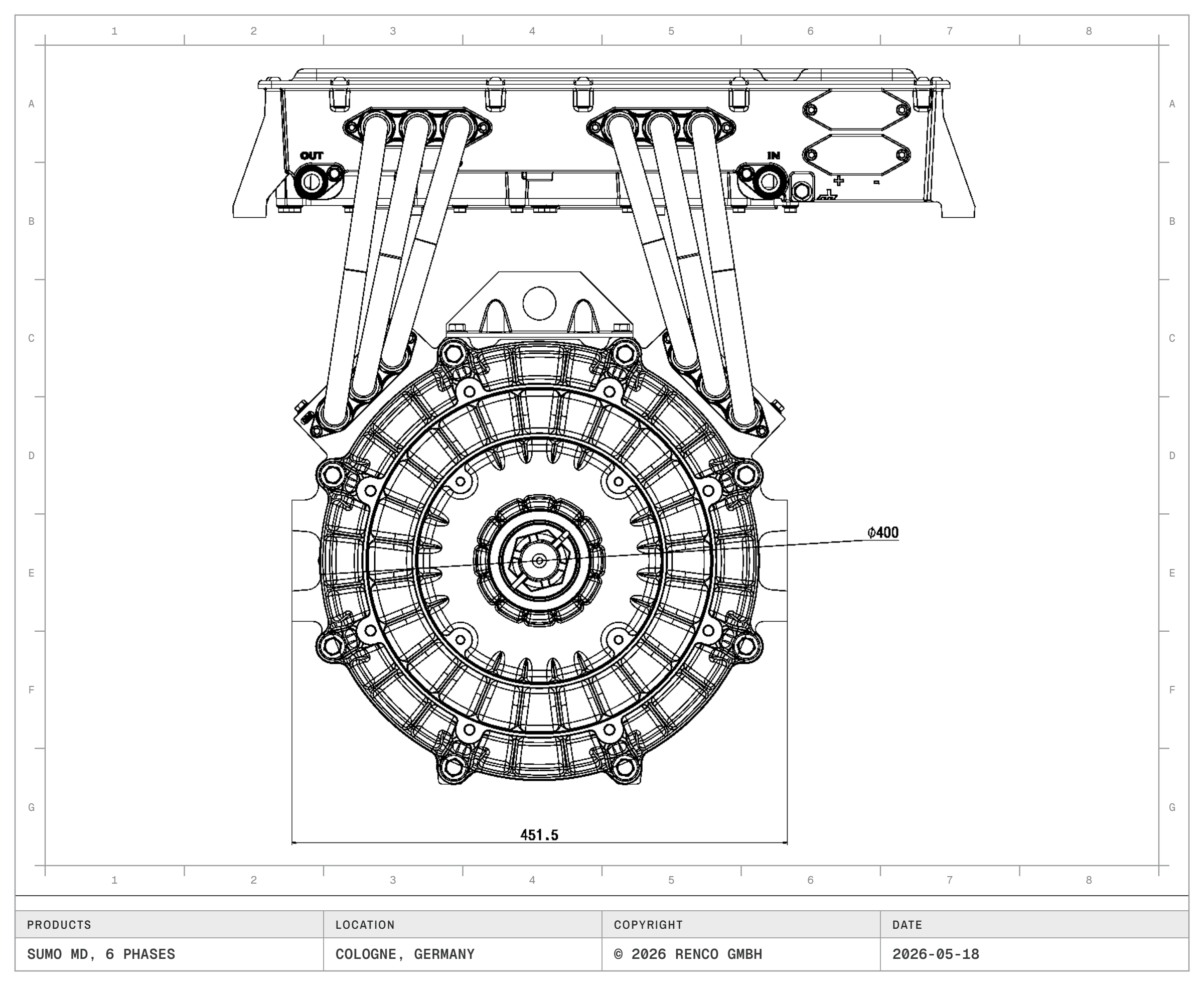

Technical Drawing - SUMO MD HV2200
Technical Drawing - SUMO MD HV2200
Technical Drawing - SUMO MD HV2200
| System | Inverter | Peak power | Continuous power | Peak torque | Continous torque | Max Operating speed | Range |
|---|---|---|---|---|---|---|---|
| SUMO MD HV1800-3P | CO150 | 170 kW | 100 kW | 1775 Nm | 680 Nm | 3250 RPM | 300-750 Vdc |
| SUMO MD HV2200-3P | CO150 | 215 kW | 145 kW | 2430 Nm | 1275 Nm | 2700 RPM | 300-750 Vdc |
| SUMO MD HV2200-3P* | CO150 | 200 kW | 145 kW | 2200 Nm | 955 Nm | 2700 RPM | 300-800 Vdc |
| SUMO MD HV2200-6P | CO200 | 255 kW | 190 kW | 2355 Nm | 990 Nm | 3700 RPM | 300-750 Vdc |
| SUMO MD HV2400-6P | CO200 | 240 kW | 120 kW | 2300 Nm | 605 Nm | 3500 RPM | 300-750 Vdc |
| SUMO MD HV2600-6P | CO200 | 265 kW | 155 kW | 2760 Nm | 970 Nm | 3500 RPM | 300-750 Vdc |
| SUMO MD HV2800-6P* | CO200 | 300 kW | 180 kW | 2860 Nm | 1050 Nm | 3500 RPM | 300-800 Vdc |
| SUMO MD HV3000-6P | CO200 | 235 kW | 145 kW | 3100 Nm | 1055 Nm | 3000 RPM | 300-750 Vdc |
| SUMO MD HV3300-6P* | CO200 | 235 kW | 130 kW | 3320 Nm | 960 Nm | 3000 RPM | 300-800 Vdc |
600 Vdc, 45°C / *650 Vdc, 45°CSpecifications are subject to change
