Tm4 Sumo™ HP
Motor/Inverter System
About
Dana TM4 SUMO HP are high-power, automotive-grade motor and inverter systems for demanding electric and hybrid drivetrains. Capable of operating as traction or generator units, they are commonly paired with a transmission for heavy vehicle traction applications.
Light Commercial
Light FLatbed
Tractor
Dump truck
Box truck
Coach bus
Heavy-Duty Flatbed
City bus
Features & benefits
Peak power
Up to 594 kW
Peak torque
Up to 2500 Nm
Max operating speed
4500 RPM
High torque/low speed permanent magnet motor and inverter combinations
Designed to interface directly with standard axles (no gearbox required)
Details
Standards
System protection: IP67 / IP6K9K
Automotive components: AEC-Q100 / AEC-Q101 / AEC-Q200
Electromagnetic compatibility EMC: Main automotive international standards
Shock and vibration standards: GMW3172 Sprung masses
Max coolant inlet temperature: 65°C
Coolant type: 40/60 water-glycol
Motor features
Proven permanent magnet technology for optimal efficiency
Compact concentric winding technology for maximum torque density
Low electro-magnetic audible noise
Low-cogging and ripple torque for better NVH
Four-quadrant operation
Latest system Features [NEW]
Voltage increase: 750 V to 800 V
Quick Connect with HVIL for safe and easy installation or maintenance
Increased performances range
INverter Features
3-phase or 6-phase high-voltage inverter
Variable switching frequency
Reflex™ gate driver technology for high power and current densities
EMI Filter
Best-in-class power density
High efficiency

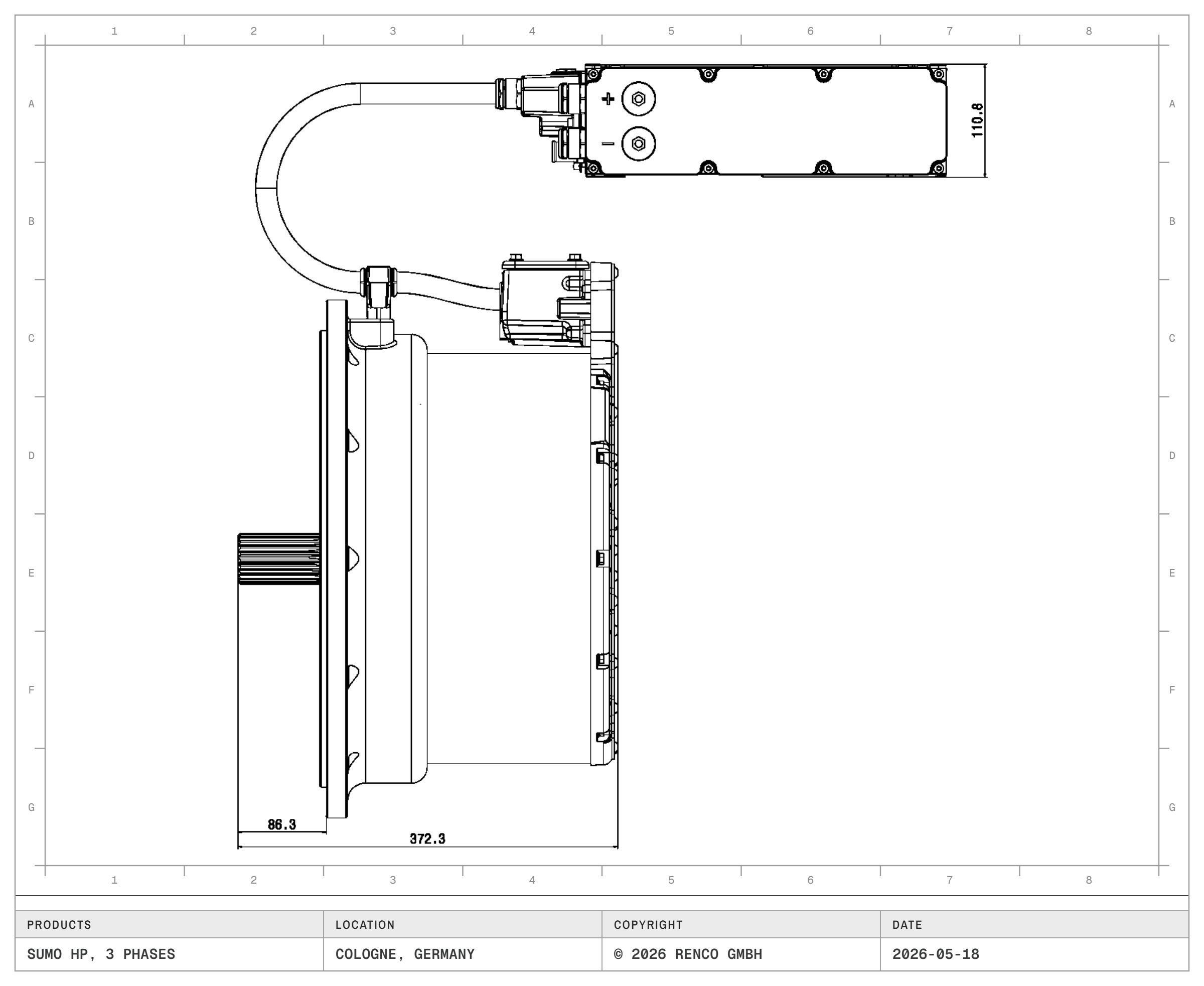

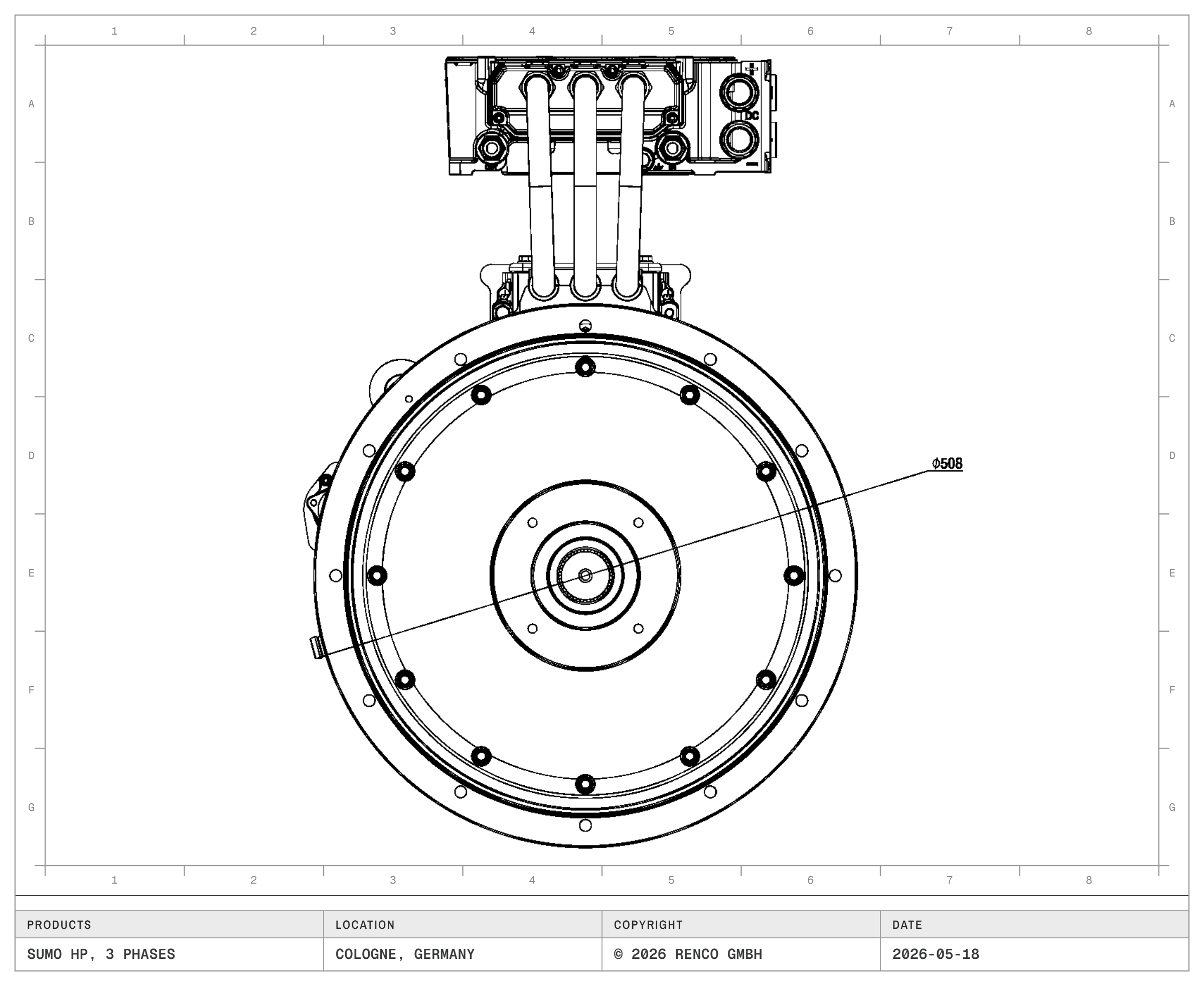

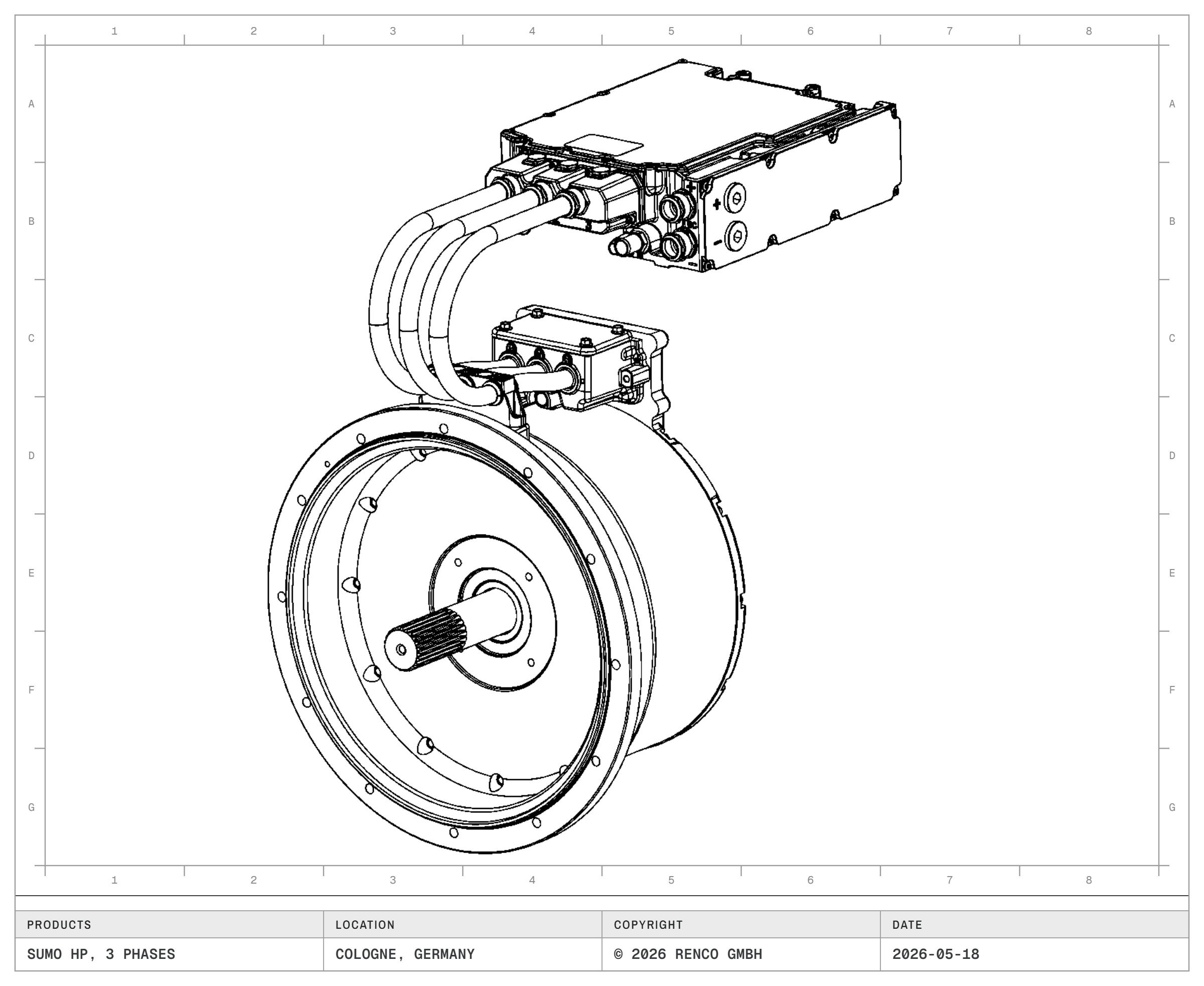

Technical Drawing - SUMO HP HV1000
Technical Drawing - SUMO HP HV1000
Technical Drawing - SUMO HP HV1000

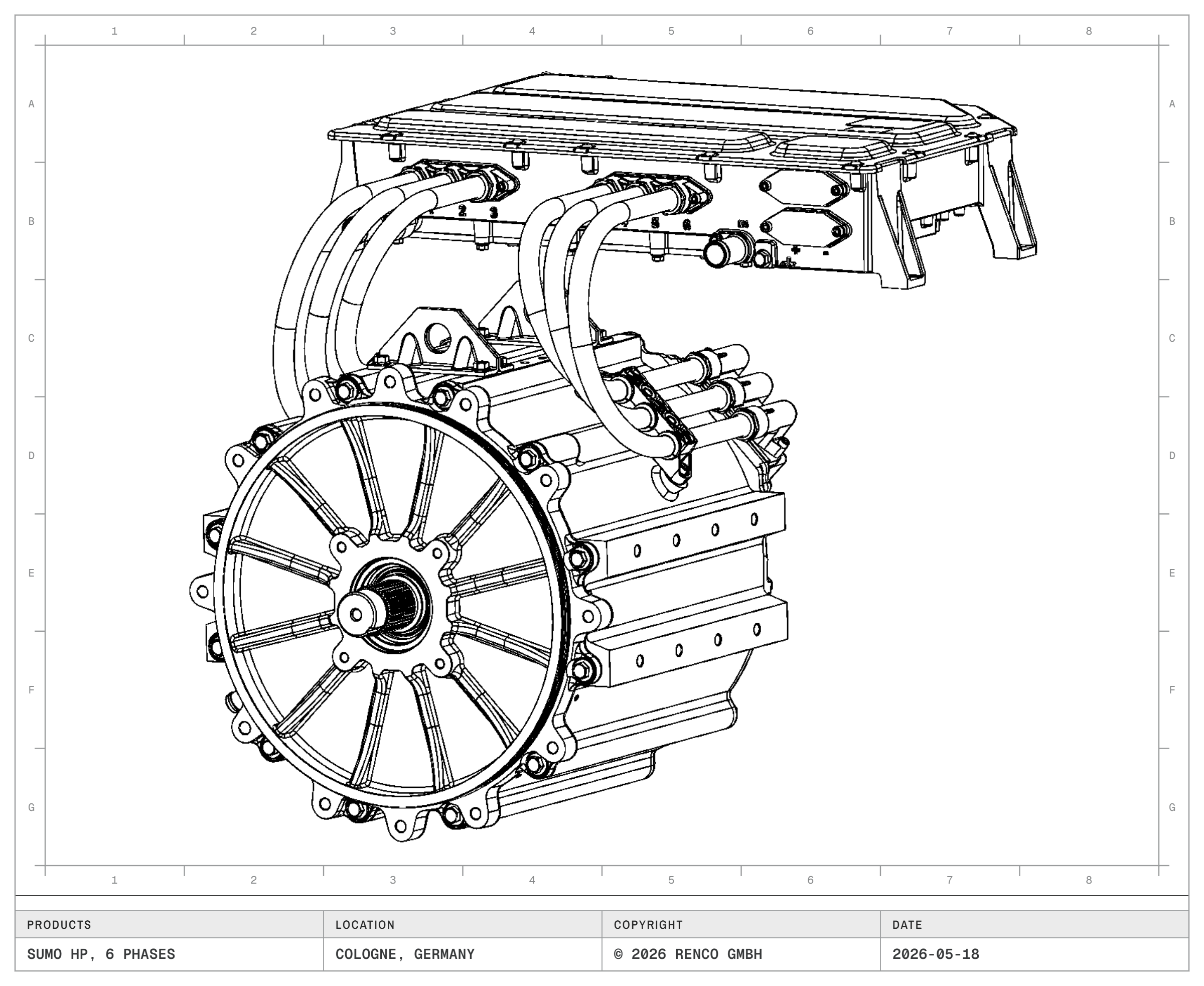

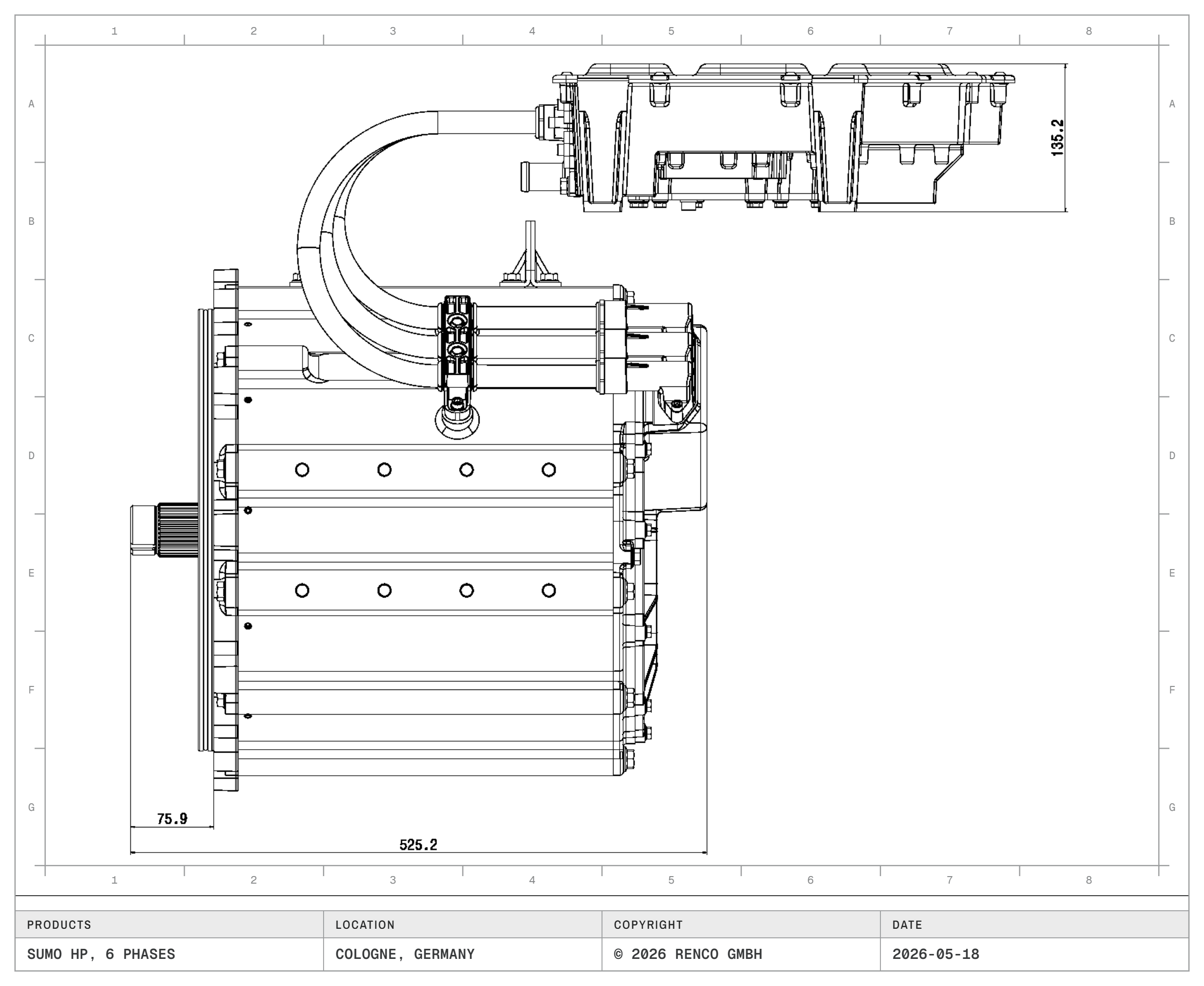

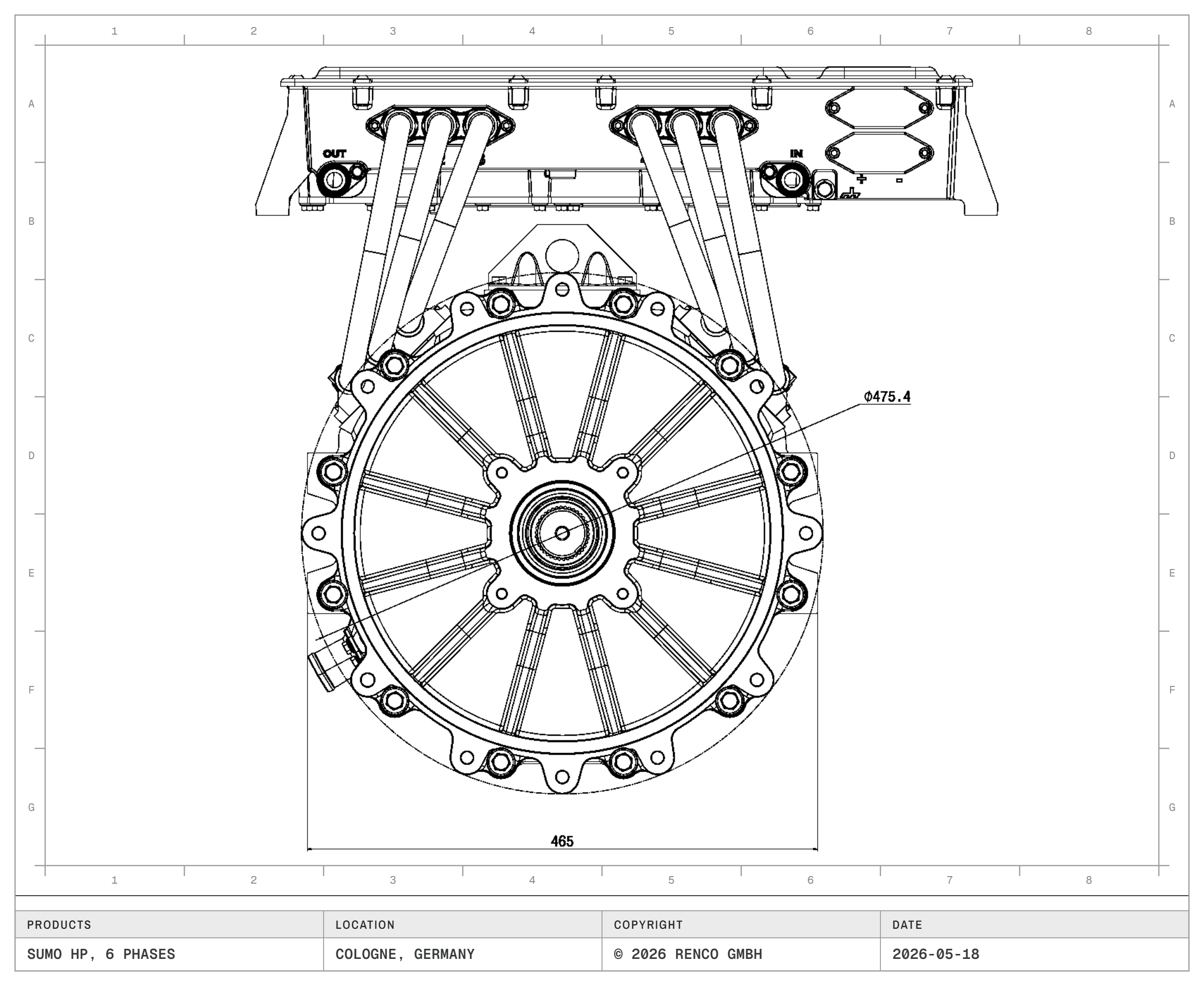

Technical Drawing - SUMO HP HV2300
Technical Drawing - SUMO HP HV2300
Technical Drawing - SUMO HP HV2300
| System | Inverter | Peak power | Continuous power | Peak torque | Continous torque | Max Operating speed | Range |
|---|---|---|---|---|---|---|---|
| SUMO HP HV1000-3P | CO150 | 205 kW | 165 kW | 1000 Nm | 625 Nm | 3800 RPM | 300-750 Vdc |
| SUMO HP HV1400-3P* | CO180 | 390 kW | 300 kW | 1400 Nm | 945 Nm | 4800 RPM | 300-850 Vdc |
| SUMO HP HV2300-6P* | CO200 | 500 kW | 395 kW | 2330 Nm | 1745 Nm | 4500 RPM | 300-800 Vdc |
| SUMO HP HV2500-6P | CO200 | 440 kW | 340 kW | 2450 Nm | 1865 Nm | 4000 RPM | 300-750 Vdc |
600 Vdc, 45°C / *650 Vdc, 45°C
Specifications are subject to change
