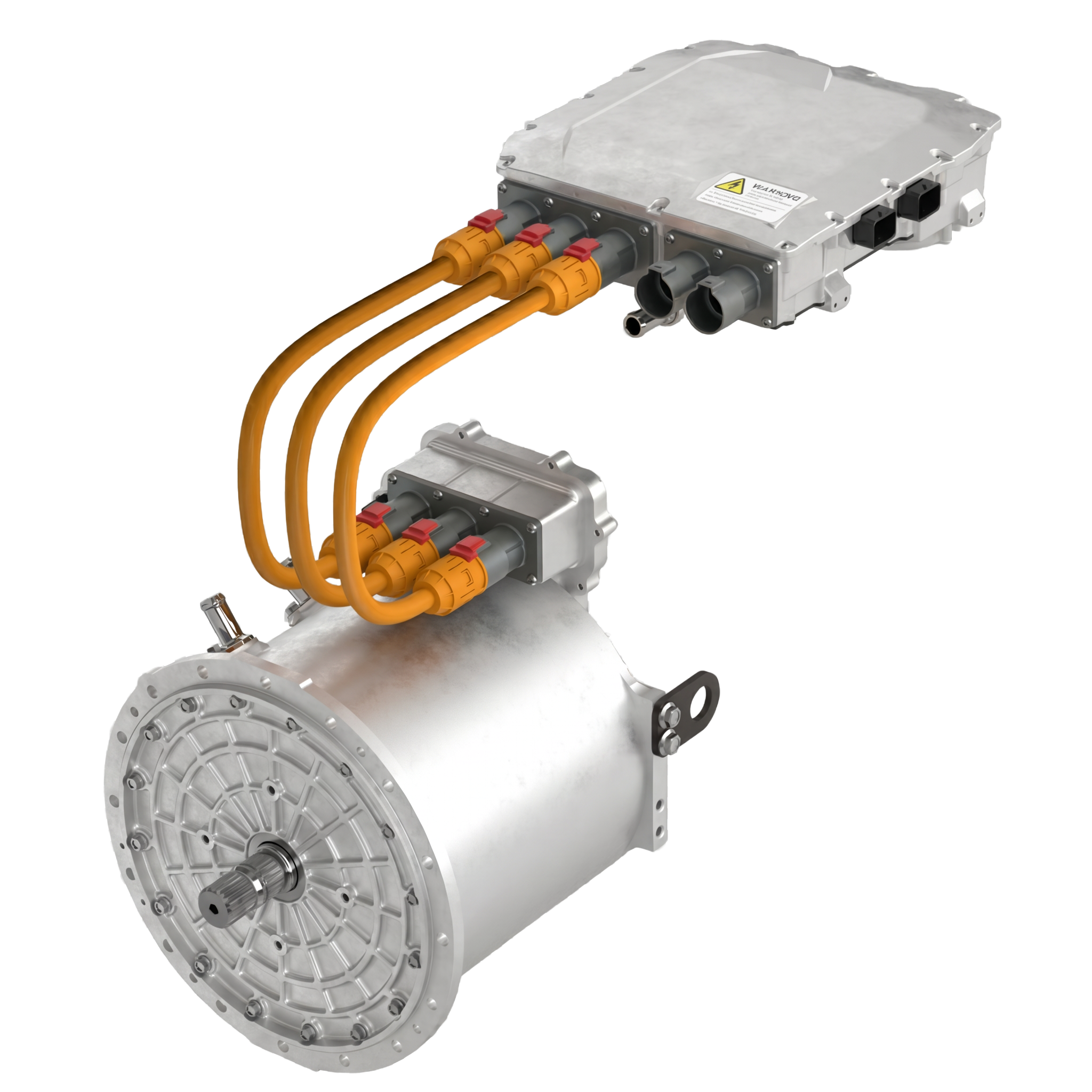

Dana TM4 SUMO™ LD HV1150
Motor/Inverter System
About
Dana TM4 SUMO LD systems are designed to interface directly with standard rear differentials, gearboxes, and e-axles.
It makes this series perfect for light commercial vehicles, medium-duty trucks, and bus platforms.
Light Commercial
Light FLatbed
Tractor
Dump truck
Box truck
Coach bus
Heavy-Duty Flatbed
City bus
Features & benefits
Peak power
Up to 375 kW
Peak torque
Up to 1235 Nm
Max operating speed
9200 RPM
High-torque permanent magnet motor and inverter combinations
Designed to meet e-axle and e-transmission mounting requirements
Suitable for both generator and traction applications
Inverter architecture compliant with the latest functional safety and cybersecurity standards
Details
Standards
System protection: IP67 / IP6K9K
Automotive components: Automotive-level corrosion and chemical resistance
Functional safety & cybersecurity: ISO 26262, ISO/SAE 21434, UNECE WP.29
Shock and vibration standards: ISO 16750-3
Max coolant inlet temperature: 65°C, Coolant type: 40/60 water-glycol
Hazardous substances & flammability: RoHS, ELV, UL94-V0
Motor features
3-phase permanent magnet motor
High torque and power density
Low electro-magnetic audible noise
Low-cogging and ripple torque for better NVH
Available in multiple flange configurations, including SAE 5 standard
Latest system Features [NEW]
Voltage range up to 900 Vdc (200–900 Vdc)
SiC technology with maximum efficiency >98.5%
Functional safety up to ASIL D
DC-link capacitor and busbar cooling optimized for high continuous current
INverter Features
3-phase high-voltage inverter
Variable switching frequency
Reflex™ gate driver technology for high power and current densities
EMC architecture compliant with global automotive standards
Best-in-class power density
High efficiency

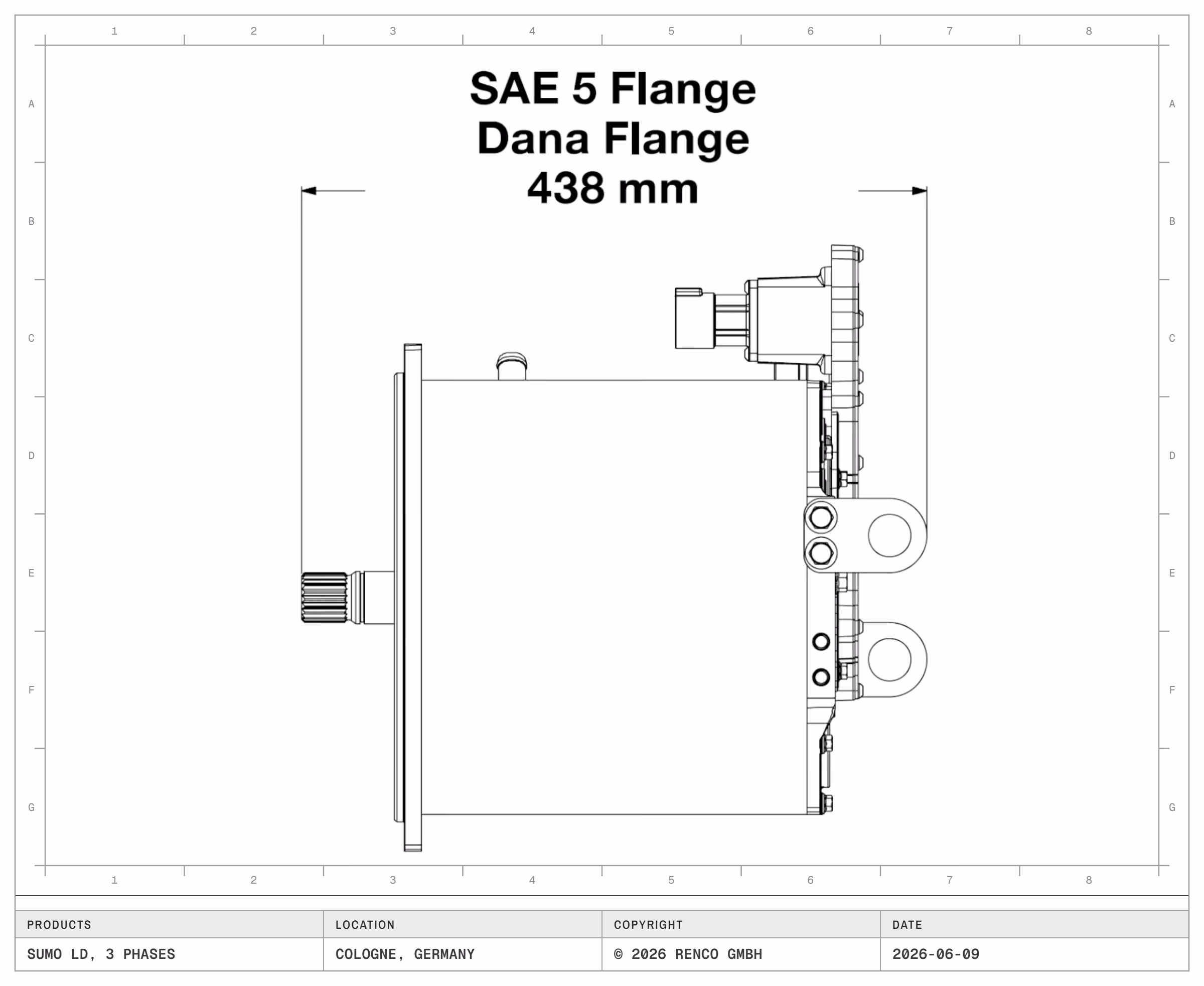

Dana TM4 Sumo LD HV1150 Flanges Options - Side View

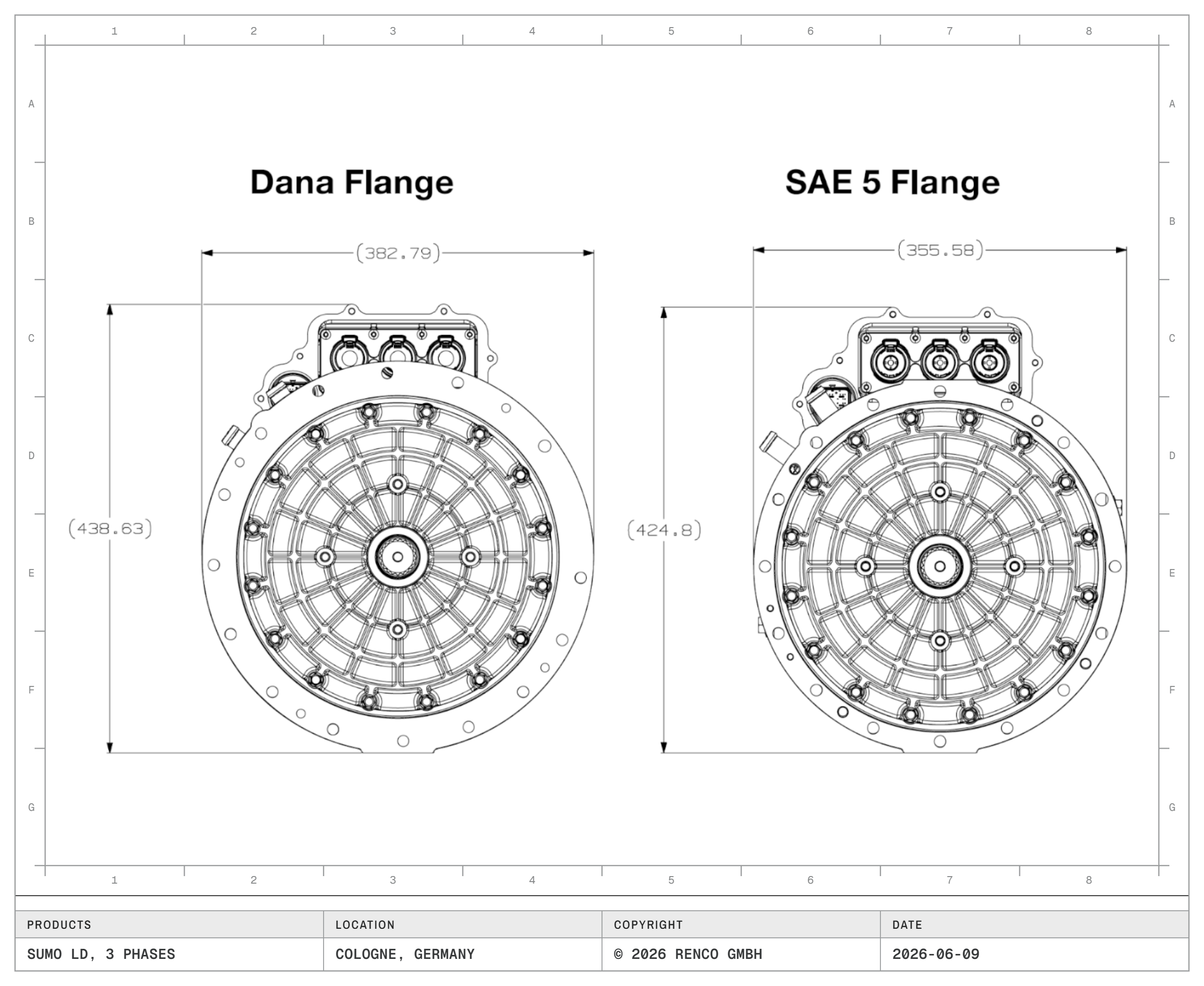

Dana TM4 Sumo LD HV1150 Flanges Options - Front View

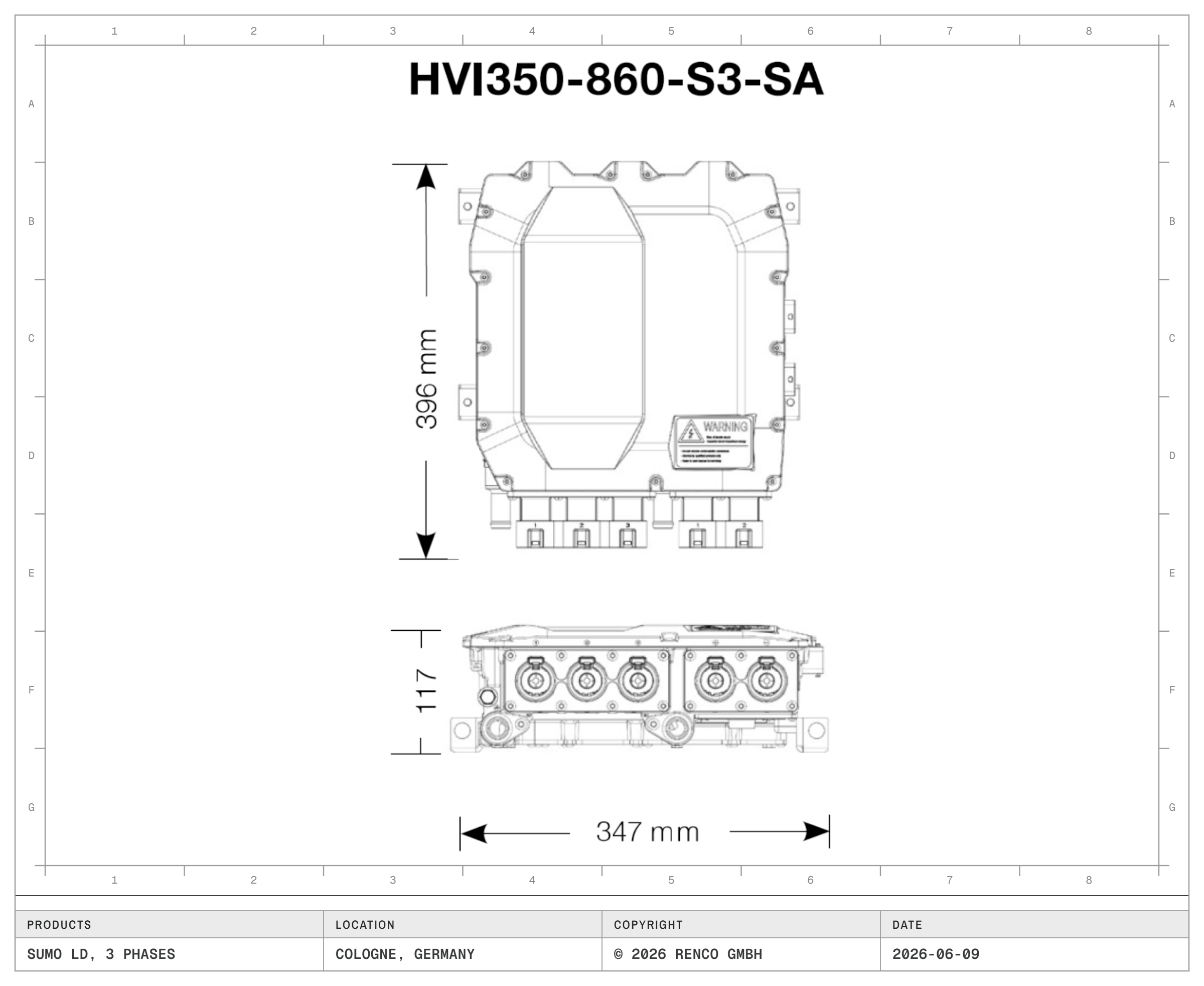

Dana TM4 Sumo LD HV1150 Inverter - HVI350-860-S3-SA
| System | Inverter | Peak power | Continuous power | Peak torque | Continous torque | Max Operating speed | Range |
|---|---|---|---|---|---|---|---|
| SUMO LD HV1150* | CO205 | 375 kW | 195 kW | 1235 Nm | 445 Nm | 9200 RPM | 200-900 Vdc |
*650 Vdc, 65°C
Specifications are subject to change
